  Home > Products > Tiny Modules > Read Only
   ID-3HP
  • 125 khz 64bits Manchester code unique chip
  • EM 4001 or compatible
  • Read range: Range up to 1000 mm with External Antenna
  • Magnetic,Wiegand,ASCII out put formats
  • Power: 3-5V
  • Size(mm)£º20*22*6

Make a reqeust     Order samples
   ID-3HP-ISO
  • 134.2KHz ISO-11785 cards
  • Output: ASCII
  • Read range: working with ID Innovations Spiderweb antenna, 120 mm with 13*3mm glass tag, 400 mm with 30 mm ear tag.
    • Different read range will be obtained if using different size tags and antennas.
  • Power: 3-5V
  • Size(mm)£º20*22*6


Datasheet     Order samples
   ID-3/12/20UP
  • 125 khz 64bits Manchester code unique chip
  • Micro power cosumption
  • Magnetic,Wiegand,ASCII out put formats
  • Power: 2.7-3.5V
  • Size(mm)£º20*22*6, 25*26*6, 38*40*7
Datasheet     Order samples
   ID-3/12/20LA-LP
  • 125 khz 64bits Manchester code unique chip
  • Micro power cosumption
  • Magnetic,Wiegand,ASCII out put formats
  • Power: 2.8-5V
  • Size(mm)£º20*22*6, 25*26*6, 38*40*7
Datasheet     Order samples
   ID-3/12/20LA-SA
  • 125 khz 64bits Manchester code unique chip
  • Stand alone reader
  • Magnetic,Wiegand,ASCII out put formats
  • Power: 3-5V
  • Size(mm)£º20*22*6, 25*26*6, 38*40*7
Datasheet     Order samples
   ID-3/12/20LA-HE
  • 125 khz 64bits Manchester code unique chip
  • HID and EM cards
  • Range up to 100mm with External Antenna
  • Power: 3-5V
  • Size(mm)£º20*22*6, 25*26*6, 38*40*7
Datasheet     Order samples
   ID-3/12/20LA-ISO
  • 134.2KHz ISO-11785 cards
  • Output: ASCII
  • Power: 3-5V
  • Size(mm)£º20*22*6, 25*26*6, 38*40*7
Datasheet     Order samples
   ID-3/12/20LA
  • 125 khz 64bits Manchester code unique chip
  • EM 4001 or compatible
  • Magnetic,Wiegand,ASCII out put formats
  • Power: 3-5V
  • Size(mm)£º20*22*6, 25*26*6, 38*40*7
Datasheet     Order samples

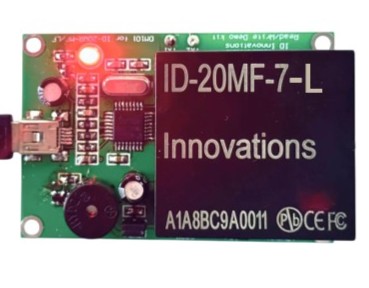

   ID-20-MF7
  • 13.56MHZ Standard Cards
  • ISO14443A Card
  • Magnetic,Wiegand,ASCII out put formats
  • Power: 3-5V
  • Size(mm)£º38*40*7
Datasheet     Order samples
   ID-20-MF7-FV
  • 13.56MHZ Standard Cards
  • 15693 Card
  • Magnetic,Wiegand,ASCII out put formats
  • Power: 3-5V
  • Size(mm)£º38*40*7
Datasheet     Order samples
   ID-0
  • 125 khz 64bits Manchester code unique chip
  • Range up to 250mm with External Antenna
  • Magnetic,Wiegand,ASCII out put formats
  • Power: 5V
  • Size(mm)£º20*22*6


Datasheet     Order samples
   ID-2
  • 125 khz 64bits Manchester code unique chip
  • Range up to 350mm with External Antenna
  • Magnetic,Wiegand,ASCII out put formats
  • Power: 5V
  • Size(mm)£º20*22*6


Datasheet     Order samples
   ID-10
  • 125 khz 64bits Manchester code unique chip
  • Range up to 100mm with External Antenna
  • Magnetic,Wiegand,ASCII out put formats
  • Power: 5V
  • Size(mm)£º25*26*6


Datasheet     Order samples
   ID-12
  • 125 khz 64bits Manchester code unique chip
  • Range up to 100mm with External Antenna
  • Magnetic,Wiegand,ASCII out put formats
  • Power: 5V
  • Size(mm)£º25*26*6


Datasheet     Order samples
   ID-20
  • 125 khz 64bits Manchester code unique chip
  • Range up to 200mm with External Antenna
  • Magnetic,Wiegand,ASCII out put formats
  • Power: 5V
  • Size(mm)£º38*40*7


Datasheet     Order samples
