New Products

1.A Micro-Power module, the ID-12uP that draws an unbelievable 5uA at 3v.

2.A Stand-alone reader module with internal memory for 48 cards, theID-12LA-SA

3. An HID-EM Dual system Module for 125khz, the new ID-12LA-HE

4. An ISO11785 module for 134khz, theID-12LA-ISO

5. The amazing Ix5 Anti-collision Reader that can simultaneously read up to 5 EM4001/EM4100 cards with super range, up to 100cm

 All ID Products
 Long Range Reader
 ID-125/180/240/iX6
 Medium Range Reader
 ID-70/100
 Short Range Reader
 ID-40/Programmer
 Tiny Modules
 Read Only ID-2/12/20series
 Read/Write ID-20WR series
 Anti-Collision Reader
 iX5
 Demonstration kits
 Cards and tags

  Home > Products > Tiny Modules > Read/Write
   ID-20WR-MFIA / WA
  • 13.56MHz Read/ Write module for ISO14443A M1 S50 S70 cards
  • Magnetic, Wiegand, ASCII output formats
  • Power: 5V
  • Size(mm)£º 38*40*7


Datasheet   Order samples
   IIMF-245
  • 13.56MHz Read/ Write module for ISO14443A M1 S50 S70 cards
  • Magnetic, Wiegand, ASCII output formats
  • Power: 5V
  • Size(mm)£º 50*36


Datasheet   Order samples

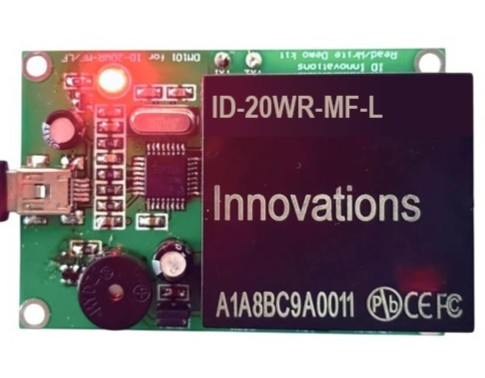

   ID-20WR-MF-L
  • 13.56MHz Read/ Write module for ISO14443A M1 S50 S70 cards
  • Magnetic, Wiegand, ASCII output formats
  • Power: 3.3-5V
  • Size(mm)£º 38*40*7


Datasheet   Order samples
   ID-20WR-LF
  • 125 khz 64bits Manchester code unique chip
  • T5557/Hitags/EM4305
  • Magnetic, Wiegand, ASCII output formats
  • Power: 5V
  • Size(mm)£º 38*40*7


Datasheet    Order samples
   ID-20WR-MF-FV
  • 13.56 MHz Read/Write moudle for multple standard cards MIFARE 1 S50, MIFARE 1 S70, Ultralight, UltralightC, NTAG, I CODE SLIX, I CODE SLIS, I CODE 2, MIFARE Desfire, MIFARE Plus, SONY Felica, etc.
  • Magnetic, Wiegand, ASCII output formats
  • Power: 3.3-5V
  • Size(mm)£º 38*40*7


Datasheet    Order samples
